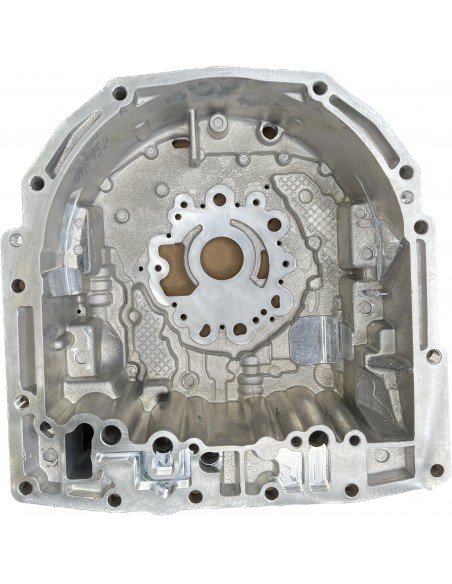

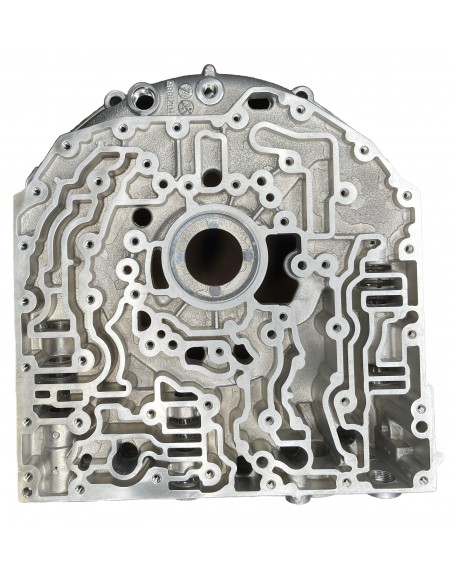

Capac Transmisie Power Shift
In Stoc
9.476 Lei
Include TVA
R121885
John Deere 6010, 6110, 6210, 6100, 6200, 6300, 6400, 6310, 6410, 6506, 6600, 6510, 6610, 6800, 6900, 6810, 6910, 6910S, SE6010, SE6110, SE6210, SE6310, SE6410, SE6510, SE6610, 7200, 7400, 7210, 7410, 7510, 7600, 7700, 7800, 7710, 7810

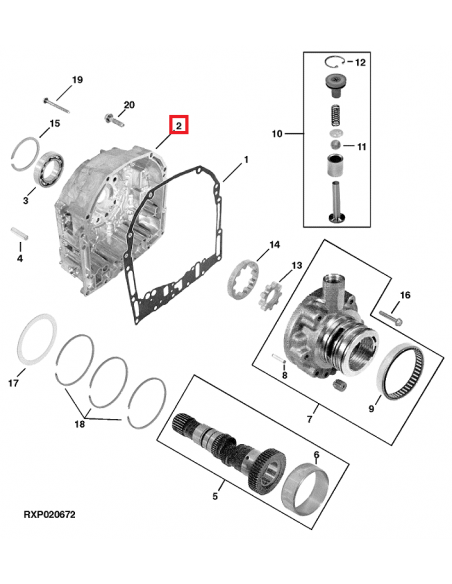

| KEY | PART NO. | PART NAME | QTY | Transmission Serial No. | 7600 | 7700 | 7800 | REMARKS |
| 1 | R121682 | Gasket | 1 | X | X | X | SUB FOR R115147 OR R119526 | |
| 2 | R95778 | Cover | 1 | ______-039132 | X | X | X | SUB R121885; ALSO ORDER RE60497 |
| 2 | R121885 | Cover | 1 | 039133-______ | X | X | X | |
| 3 | R115119 | Ball Bearing | 1 | X | X | X | ||
| 4 | R38295 | Needle Roller | 1 | X | X | X | SUB FOR R78165 | |
| 5 | RE44027 | Shaft | 1 | X | X | X | ||
| 6 | R100820 | Bushing | 1 | X | X | X | ||
| 7 | RE44028 | Manifold | 1 | X | X | X | ||
| 8 | R30587 | Dowel Pin | 2 | X | X | X | ||
| 9 | JD10271 | Needle Bearing | 1 | X | X | X | SUB FOR JD10528 | |
| 10 | RE47291 | Pump Repair Kit | 1 | X | X | X | ||
| 11 | R79639 | Ball | 1 | X | X | X | ||
| 12 | 40M7256 | Snap Ring | 1 | X | X | X | ||
| 13 | R108926 | Gear | 1 | X | X | X | ||
| 14 | R108928 | Gear | 1 | X | X | X | ||
| 15 | T27432 | Snap Ring | 1 | X | X | X | ||
| 16 | R106826 | Screw | 6 | X | X | X | ||
| 17 | R87210 | Thrust Washer | 1 | X | X | X | ||
| 18 | R33167 | Ring | 3 | X | X | X | ||
| 19 | R113465 | Screw | 2 | X | X | X | ||
| R112063 | Screw | 3 | X | X | X | |||
| 20 | R115141 | Screw | 9 | X | X |
|
|
R121885
