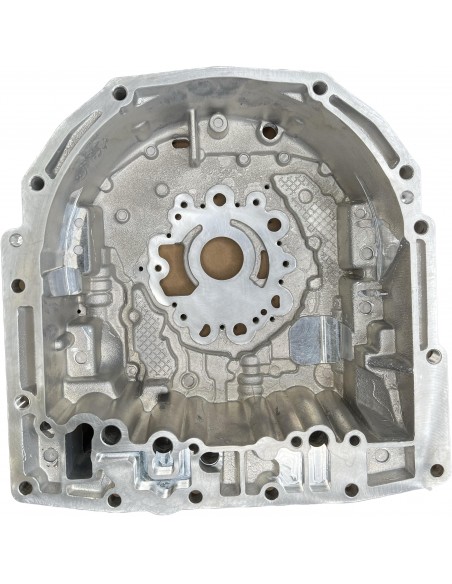

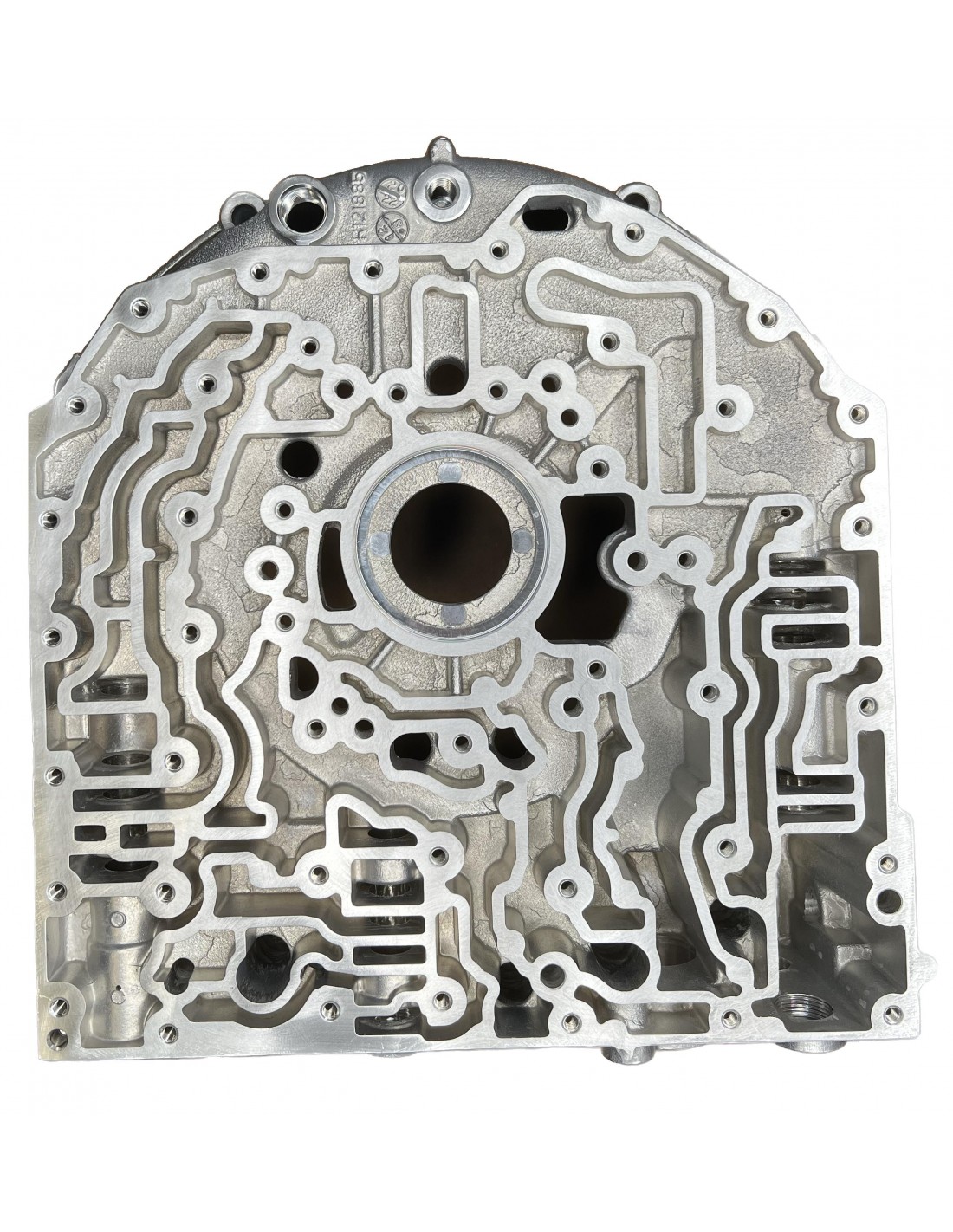

Cover, Transmission Cover/Valves Power Shift

In Stock
9,500 Lei
Tax included

R121885



John Deere 6010, 6110, 6210, 6100, 6200, 6300, 6400, 6310, 6410, 6506, 6600, 6510, 6610, 6800, 6900, 6810, 6910, 6910S, SE6010, SE6110, SE6210, SE6310, SE6410, SE6510, SE6610, 7200, 7400, 7210, 7410, 7510, 7600, 7700, 7800, 7710, 7810

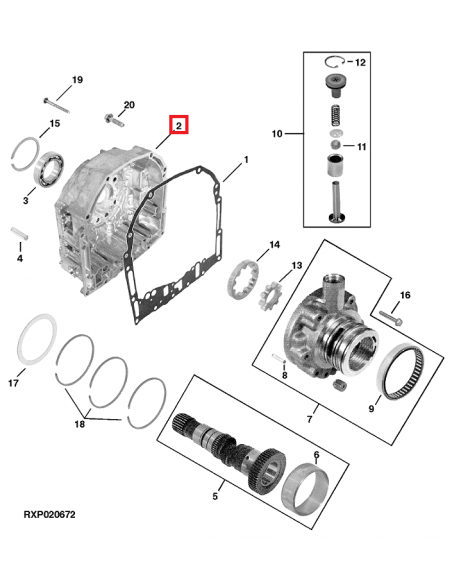

KEY PART NO.  PART NAME QTY  Transmission Serial No. 7600  7700  7800 REMARKS
R121682  Gasket    SUB FOR R115147 OR R119526
R95778  Cover  ______-039132  SUB R121885; ALSO ORDER RE60497
R121885  Cover  039133-______
R115119  Ball Bearing
R38295  Needle Roller    SUB FOR R78165
RE44027  Shaft
R100820  Bushing
RE44028  Manifold
R30587  Dowel Pin
JD10271  Needle Bearing    SUB FOR JD10528
10  RE47291  Pump Repair Kit
11  R79639  Ball
12  40M7256  Snap Ring
13  R108926  Gear
14  R108928  Gear
15  T27432  Snap Ring
16  R106826  Screw
17  R87210  Thrust Washer
18  R33167  Ring
19  R113465  Screw
  R112063  Screw
20  R115141  Screw
  •
