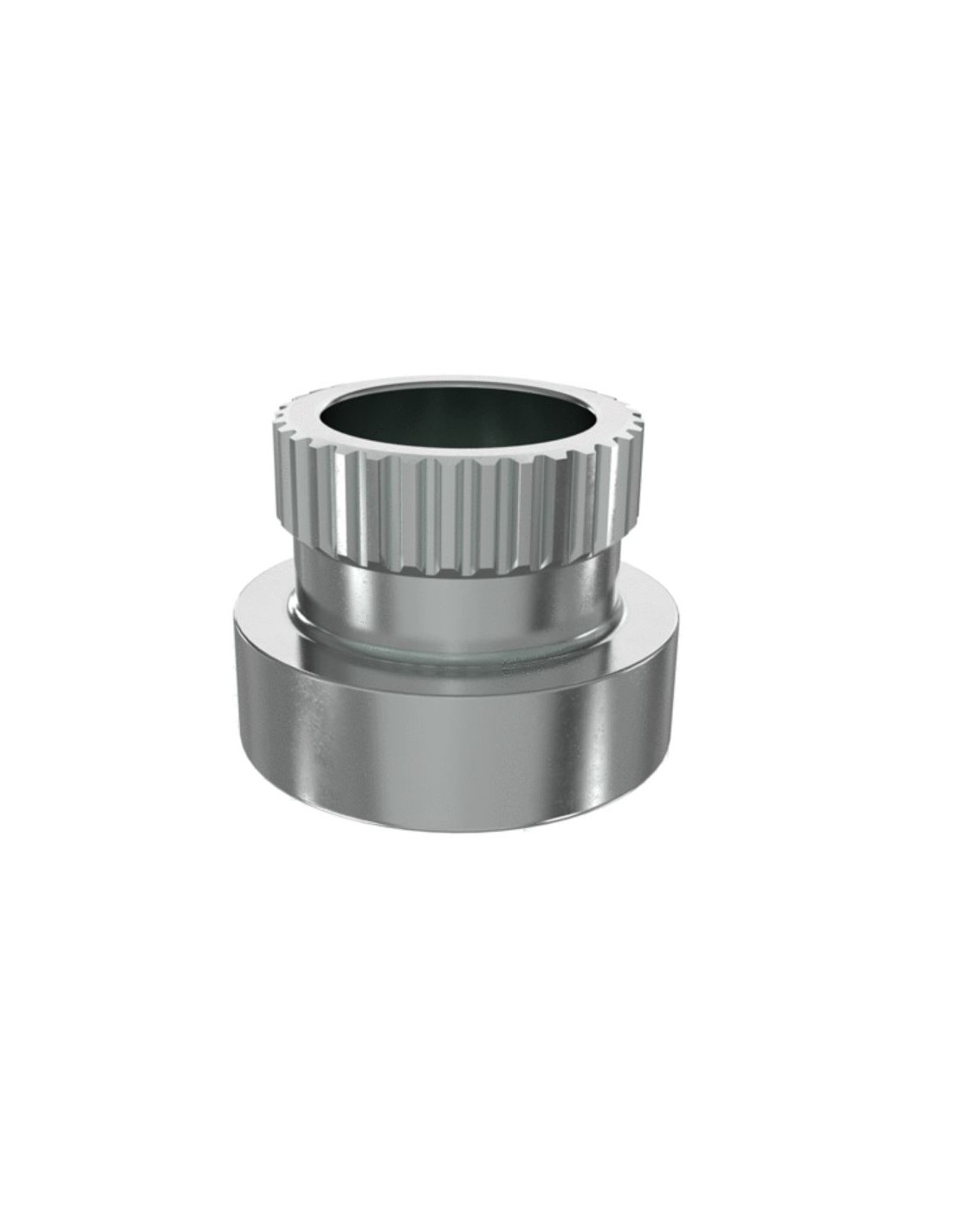

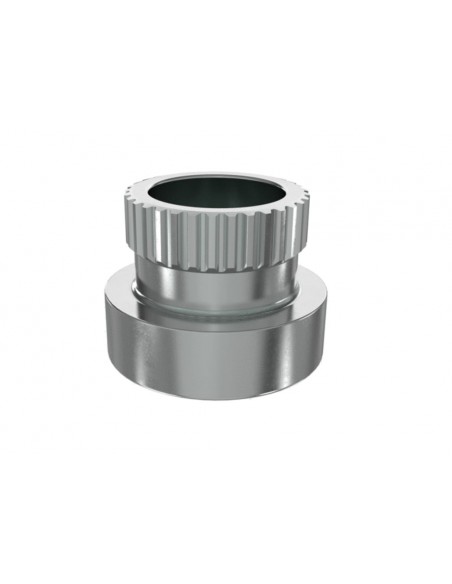

Bucsa Ax PTO
Pe Comanda
785 Lei
Include TVA
Livrare in 3-10 Zile. Pretul Produselor Pe Comanda Poate Diferi de cel Actual. Sunati pentru confirmare!
R270864 - John Deere
R270864 - Bucsa Ax PTO R122909
John Deere R270864, R122915
John Deere Tractor 7820, 7920, 8100, 8200, 8300, 8400, 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420, 8520, 8130, 8230, 8330, 8430, 8530

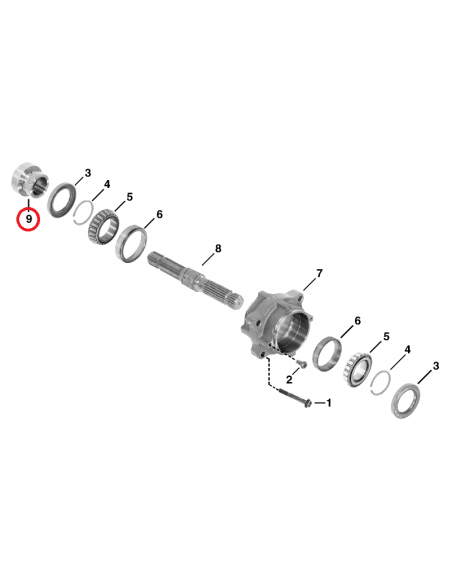

Part List 8100, 8200, 8300 and 8400 Tractors (Worldwide Edition)
| KEY | PART NO. | PART NAME | QTY | Axle Serial No. | ALL | REMARKS |
| 1 | 19M7810 | Screw | 4 | X | M10 X 80 | |
| 2 | R27329 | Screw | 4 | X | ||
| 3 | RE60467 | Seal | 2 | X | ||
| 4 | T44931 | Snap Ring | 2 | X | 4.724MM(.186") | |
| 4 | T44932 | Snap Ring | 1 | X | 4.267MM(.168") | |
| 4 | T44933 | Snap Ring | 1 | X | 4.318MM(.170") | |
| 4 | T44934 | Snap Ring | 1 | X | 4.368MM(.172") | |
| 4 | T44935 | Snap Ring | 1 | X | 4.445MM(.175") | |
| 4 | T44936 | Snap Ring | 1 | X | 4.597MM(.181") | |
| 4 | T44937 | Snap Ring | 1 | X | 4.673MM(.184") | |
| 5 | JD7370 | Bearing Cone | 2 | X | ||
| 6 | JD7297 | Bearing Cup | 2 | X | ||
| 7 | R122914 | Housing | 1 | X | (SUB R217854) | |
| 8 | R122909 | Shaft | 1 | X | ||
| 9 | R122915 | Locking Collar | 1 | X | (SUB R270864) |
R270864
