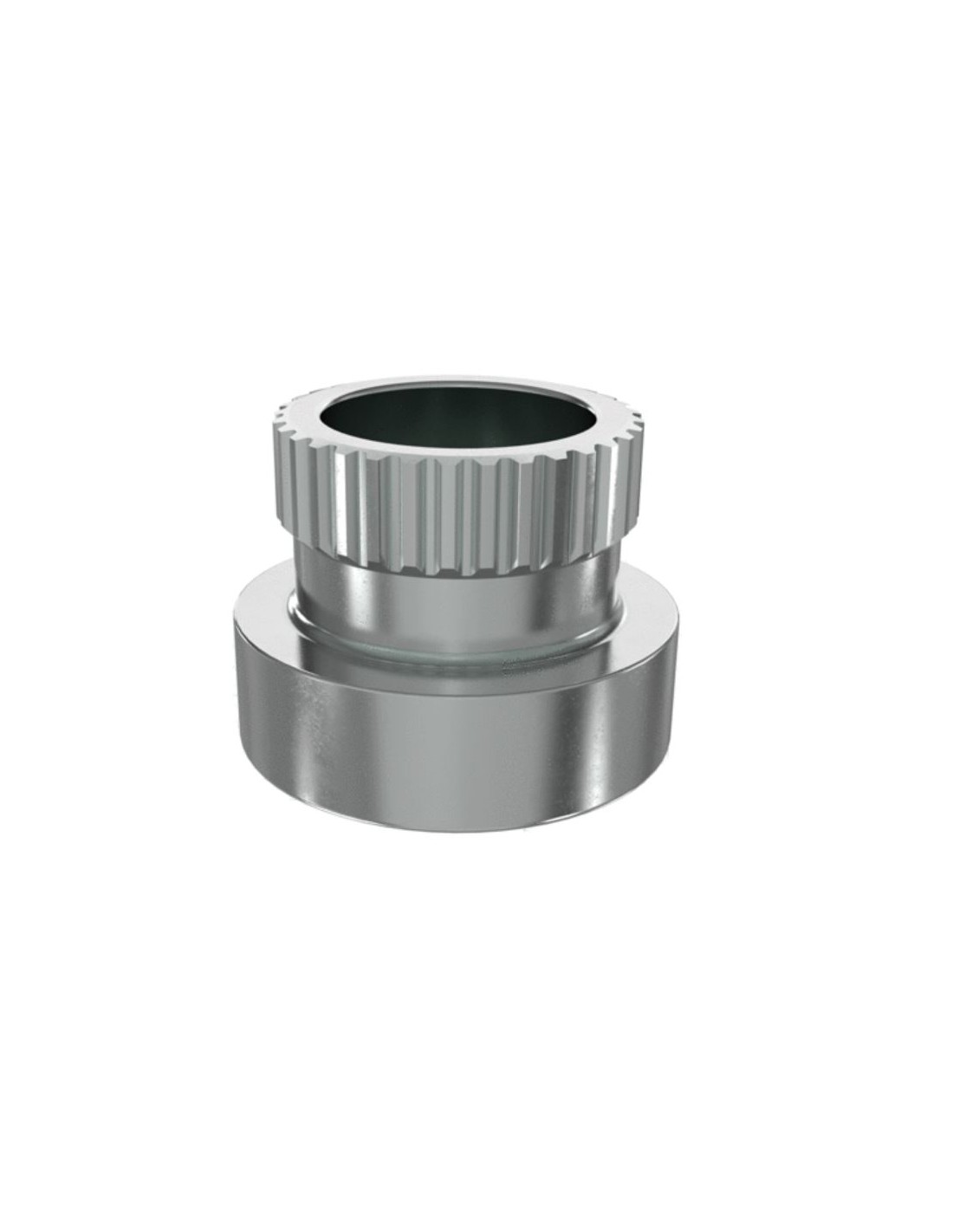

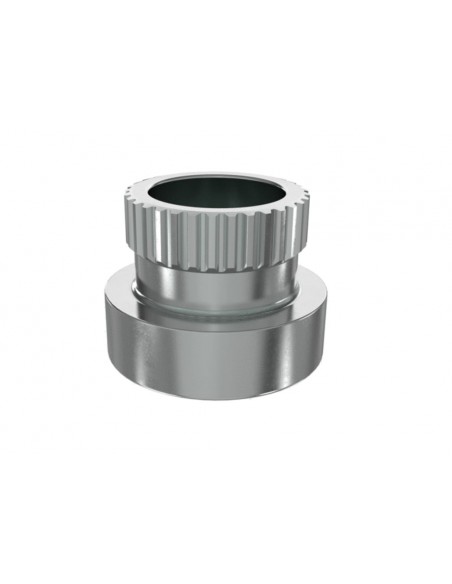

Splined Coupling
Out of Stock
785 Lei
Tax included
Delivery in 3-10 Days. The price of the products on order may be different from the current one. Call for confirmation!
R270864 - John Deere
R270864 - Splined Coupling Shaft PTO R122909
John Deere R270864, R122915
John Deere Tractor 7820, 7920, 8100, 8200, 8300, 8400, 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420, 8520, 8130, 8230, 8330, 8430, 8530

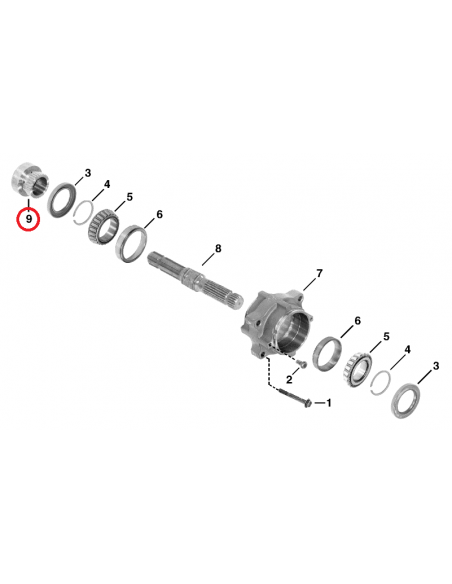

Part List 8100, 8200, 8300 and 8400 Tractors (Worldwide Edition)
| KEY | PART NO. | PART NAME | QTY | Axle Serial No. | ALL | REMARKS |
| 1 | 19M7810 | Screw | 4 | X | M10 X 80 | |
| 2 | R27329 | Screw | 4 | X | ||
| 3 | RE60467 | Seal | 2 | X | ||
| 4 | T44931 | Snap Ring | 2 | X | 4.724MM(.186") | |
| 4 | T44932 | Snap Ring | 1 | X | 4.267MM(.168") | |
| 4 | T44933 | Snap Ring | 1 | X | 4.318MM(.170") | |
| 4 | T44934 | Snap Ring | 1 | X | 4.368MM(.172") | |
| 4 | T44935 | Snap Ring | 1 | X | 4.445MM(.175") | |
| 4 | T44936 | Snap Ring | 1 | X | 4.597MM(.181") | |
| 4 | T44937 | Snap Ring | 1 | X | 4.673MM(.184") | |
| 5 | JD7370 | Bearing Cone | 2 | X | ||
| 6 | JD7297 | Bearing Cup | 2 | X | ||
| 7 | R122914 | Housing | 1 | X | (SUB R217854) | |
| 8 | R122909 | Shaft | 1 | X | ||
| 9 | R122915 | Locking Collar | 1 | X | (SUB R270864) |
R270864
