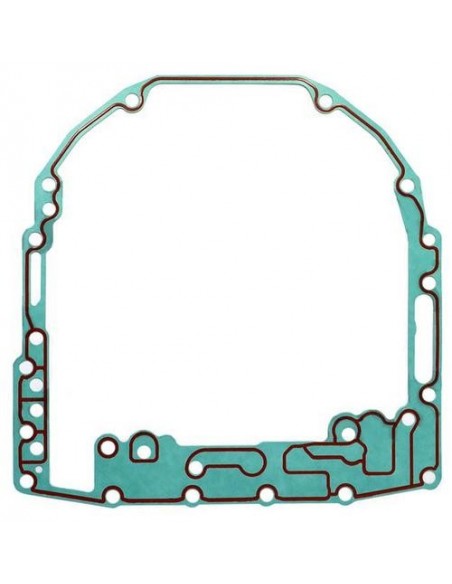

Garnitura Transmisie
In Stoc
190 Lei
Include TVA
R321236
John Deere Tractor 1654 (China), 1854 (China), 2054 (China), 2204 (China), 2204M (China), 5620 (Europe), 5720 (Europe), 5820 (Europe), 5080R (Europe), 5090R (Europe), 5100R (Europe), 6215 (North America), 6405 (South America), 6415 (North America), 6605 (South America), 6615 (North America), 6715 (North America), 6020S (Europe), 6020SE (Europe), 6120 (Europe), 6120 (North America), 6120L (North America), 6120SE (Europe), 6220 (Europe), 6220 (North America), 6220L (North America), 6220SE (Europe), 6320 (Europe), 6320 (North America), 6320L (North America), 6320SE (Europe), 6420 (Europe), 6420 (North America), 6420L (North America), 6420S (Europe), 6420SE (Europe), 6520 (Europe), 6520L (North America), 6520SE (Europe), 6620 (Europe), 6620SE (Europe), 6820 (Europe), 6920 (Europe), 6920S (Europe), 6920SE (Europe), 6130 (Europe), 6230 (Europe), 6230 (North America), 6230PR (Europe), 6230PR (North America), 6330 (Europe), 6330 (North America), 6330PR (Europe), 6330PR (North America), 6430 (Europe), 6430 (North America), 6430PR (Europe), 6430PR (North America), 6530 (Europe), 6530PR (Europe), 6534 (Europe), 6534PR (Europe), 6630 (Europe), 6630PR (Europe), 6830 (Europe), 6830PR (Europe), 6930 (Europe), 6930PR (Europe), 6125J (South America), 6130J (South America), 6140J (Mexico), 6155J (Mexico), 6165J (South America), 6185J (Mongolia/Asia), 6205J (South America), 6100MC (Europe), 6105M (Europe), 6110MC (Europe), 6115M (Europe), 6125M (Europe), 6130M (Europe), 6140M (Europe), 6150M (Europe), 6170M (Europe), 6105R (Europe), 6110R (Europe), 6115R (Europe), 6120R (Europe), 6125R (Europe), 6130R (Europe), 6135R (Europe), 6140R (Europe), 6145R (Europe), 6150R (Europe), 6150RH (North America), 6155R (Europe), 6170R (Europe), 6175R (Europe), 6190R (Europe), 6210R (Europe), 6090RC (Europe), 6100RC (Europe), 6110RC (Europe), 7505, 7515 (South America), 7815 (Brasil), 7220 (Worldwide), 7320 (Worldwide), 7420 (Worldwide), 7720 (Worldwide), 7820 (USA), 7920 (Worldwide), 7130 (North America), 7130PR (North America), 7230 (North America), 7230PR (North America), 7330 (North America), 7330PR (North America), 7430PR (Europe), 7430PR (North America), 7530PR (Europe), 7630, 7730, 7830, 7830 (Russia), 7930, 7930 (Russia), 7185J (South America), 7195J (South America), 7205J (South America), 7210J (South America), 7225J (South America), 7200R (Worldwide), 7210R (Worldwide), 7215R (Worldwide), 7230R (Worldwide)

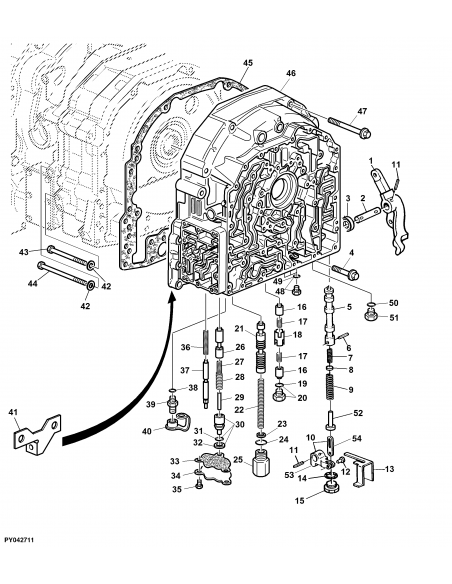

| KEY | PART NO. | PART NAME | QTY | Serial No. | 6520 | 6620 | REMARKS |
| 1 | L154133 | Arm | 1 | X | X | ||
| 2 | R95063 | Pin Fastener | 1 | X | X | ||
| 3 | AR103873 | Seal | 1 | X | X | ||
| 4 | R115141 | Screw | 8 | X | X | ||
| 5 | L157774 | Spool Valve | 1 | X | X | (CLUTCH PEDAL) (SUB FOR R95066 APPL) | |
| 6 | R107252 | Spring Pin | 1 | X | X | ||
| 7 | L157703 | Spring | 1 | X | X | ||
| 8 | R52665 | Disk | 2 | X | X | ||
| 9 | R110080 | Spring | 1 | X | X | ||
| 10 | RE47315 | Arm Kit | 1 | X | X | NLA; ORDER R109666, R95072 | |
| 11 | 34M7141 | Spring Pin | 2 | X | X | 5 X 30 MM | |
| 12 | R58941 | Pin Fastener | 1 | X | X | ||
| 13 | R95073 | Stop | 1 | X | X | (FOR R181499 OR R202359) | |
| 13 | R213853 | Stop | 1 | X | X | (FOR R331119) | |
| 14 | 51M7045 | O-Ring | 1 | X | X | 19.300 X 2.200 MM | |
| 15 | R95065 | Fitting | 1 | X | X | ||
| 16 | R175385 | Spool Valve | 2 | X | X | ||
| 17 | R249706 | Compression Spring | 2 | X | X | (SUB FOR R256840) | |
| 18 | R175386 | Spool Valve | 1 | X | X | ||
| 19 | 51M7043 | O-Ring | 1 | X | X | 15.300 X 2.200 MM | |
| 20 | RE46685 | Fitting Plug | 1 | X | X | ||
| 21 | R120947 | Valve | 1 | X | X | (PRESSURE- REGULATING) | |
| 22 | R109535 | Spring | 1 | X | X | ||
| 23 | R86638 | Shim | 4 | X | X | ||
| 24 | 51M7045 | O-Ring | 1 | X | X | 19.300 X 2.200 MM | |
| 25 | L166446 | Fitting Plug | 1 | X | X | (SUB FOR R171409 APPL) | |
| 26 | R110256 | Valve | 1 | X | X | ||
| 27 | R299263 | Compression Spring | 1 | X | X | (ORD W/ R299262, R299264, R299265) (SUB FOR R95216) | |
| 28 | R299262 | Compression Spring | 1 | X | X | (ORD W/ R299263, R299264, R299265) (SUB FOR R112974, R244609, R291057) | |
| 29 | R299264 | Pin | 1 | X | X | (ORD W/ R299262, R299263, R299265) (SUB FOR R110257) | |
| 30 | R299265 | Piston | 1 | X | X | (ORD W/ R299262, R299263, R299264) (SUB FOR R176199) | |
| 31 | P48347 | O-Ring | 1 | X | X | ||
| 32 | R112976 | Seal | 1 | X | X | ||
| 33 | R171413 | Gasket | 1 | X | X | NLA; ORDER R341955 | |
| 33 | R341955 | Gasket | 1 | X | X | ||
| 34 | R171412 | Cover | 1 | X | X | ||
| 35 | 19M7862 | Screw | 3 | X | X | M6 X 20 | |
| 36 | R54174 | Spring | 1 | X | X | ||
| 37 | R176198 | Valve | 1 | X | X | ||
| 38 | 51M7041 | O-Ring | 1 | X | X | 11.300 X 2.200 MM | |
| 39 | AL80099 | Hydr. Quick Coupler Plug | 2 | X | X | ||
| 40 | R77175 | Cover | 2 | X | X | ||
| 41 | L153819 | Holder | 1 | X | X | ||
| 42 | 24M7028 | Washer | 1 | X | X | 10.500 X 20 X 2 MM | |
| 43 | 19M7958 | Screw | 1 | X | X | M10 X 150 (10.9) | |
| 44 | R104714 | Screw | 1 | X | X | M10X185 (10.9) | |
| 45 | R202640 | Gasket | 1 | X | X | NLA; ORDER R321236; SUB FOR R169942 OR R198523 | |
| 45 | R321236 | Gasket | 1 | X | X | ||
| 46 | R202359 | Housing | 1 | X | X | (MARKED R181499 OR R202359) (ORD R331119, R213853) | |
| 46 | R331119 | Cover | 1 | X | X | (SUB FOR R208927, R202359) | |
| 47 | R112063 | Screw | 5 | X | X | ||
| 48 | RE46684 | Fitting Plug | AR | X | X | ||
| 49 | 51M7041 | O-Ring | 1 | X | X | 11.300 X 2.200 MM | |
| 50 | 51M7042 | O-Ring | 1 | X | X | 13.300 X 2.200 MM | |
| 51 | L158473 | Plug | 1 | X | X | (ORD W/ 51M7042) | |
| 52 | R121609 | Guide | 1 | X | X | ||
| 53 | R109666 | Arm | 1 | X | X | ||
| 54 | R95072 | Link | 1 | X | X |
R321236
