Intercooler, Aftercooler
Pe Comanda
3.680 Lei
Include TVA
Livrare in 3-10 Zile. Pretul Produselor Pe Comanda Poate Diferi de cel Actual. Sunati pentru confirmare!

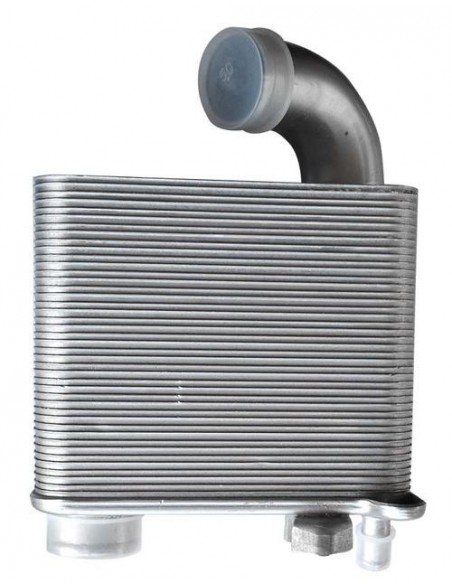

AL156587 - John Deere
AL156587 - Intercooler, Aftercooler
- John Deere Tractor 6215, 6415, 6320, 6420, 6320L, 6420L, 6520L, 6615, 6715, 6820, 6920, 6920S, 7220, 7320, 7420, 7520, SE6320, SE6420, SE6520, SE6620
- John Deere POWERTECH 4.5L, POWERTECH 6.8 L, POWERTECH 6068

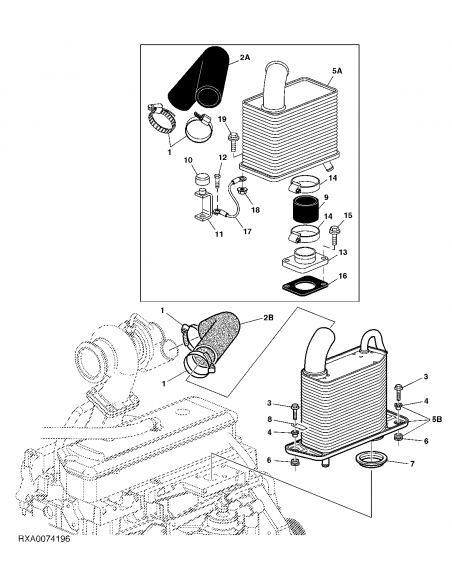

| KEY | PART NO. | PART NAME | QTY | Serial No. | 6520 | 6620 | REMARKS |
| 1 | AL112931 | Clamp | 2 | X | |||
| 2 | R503806 | Hose | 1 | X | |||
| 3 | AL156587 | Aftercooler | 1 | X | |||
| 4 | R515254 | Hose | 1 | X | |||
| 5 | L78871 | Isolator | 1 | X | |||
| 6 | AL156098 | Bracket | 1 | X | |||
| 7 | 19M7166 | Cap Screw | 1 | X | M10 X 20 | ||
| 8 | AL155869 | Flange | 1 | X | |||
| 9 | AL112931 | Clamp | 2 | X | |||
| 10 | 19M7658 | Cap Screw | 2 | X | M10 X 50 | ||
| 11 | R133893 | Gasket | 1 | X | |||
| 12 | AL159469 | Wiring Lead | 1 | X | |||
| 13 | 14M7298 | Flange Nut | 1 | X | M8 | ||
| 14 | 37M7083 | Screw | 1 | X | M8 X 12 |
AL156587
