Conducta Ulei Transmisie OE
Pe Comanda
437 Lei
Include TVA
Livrare in 3-10 Zile. Pretul Produselor Pe Comanda Poate Diferi de cel Actual. Sunati pentru confirmare!

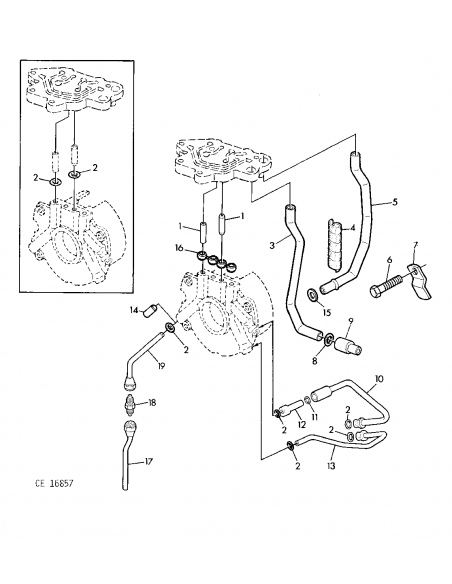

Line OIL MANIFOLD/OIL LINES John Deere
L34111
| KEY | PART NO. | PART NAME | QTY | SERIAL NO. | 940 | 1040 | 1140 | REMARKS |
| 1 | L33333 | Tube | 3 | X | X | |||
| 1 | L33333 | Tube | 4 | X | (A) | |||
| 2 | A3917R | O-RING | AR | X | X | |||
| 3 | L34111 | LINE | 1 | X | X | |||
| 4 | CE15038 | GUARD | 1 | X | X | |||
| 5 | L33145 | OIL LINE | 1 | ______-109100 | X | X | ||
| 5 | L37505 | OIL LINE | 1 | 109101-123503 | X | X | (ORD L40964, L40965) | |
| 5 | L40964 | OIL LINE | 1 | 123504-______ | X | X | ||
| 6 | 19H2552 | CAP SCREW | 1 | X | X | 3/8"X5/8" | ||
| 7 | L33152 | Holder | 1 | X | X | |||
| 8 | R375R | O-RING | 1 | X | X | |||
| 9 | T25408 | SLEEVE | 1 | X | X | |||
| 10 | AL28868 | OIL LINE | 1 | X | X | |||
| 11 | T44604 | O-RING | 1 | X | X | |||
| 12 | L39853 | OIL TUBE | 1 | X | X | (SUB FOR AL30188) | ||
| 13 | AL28867 | OIL LINE | 1 | X | X | |||
| 14 | L33334 | DOWEL PIN | 1 | X | X | |||
| 15 | L40965 | Washer | 1 | 123504-______ | X | X | ||
| 16 | L40773 | Gasket | 1 | 139699-______ | X | X | ||
| 17 | AL28880 | OIL LINE | 1 | X | X | (B) | ||
| 18 | R27095 | FITTING | 1 | X | X | (B) | ||
| 19 | AL28921 | OIL LINE | 1 | X | X | (B) |
L34111
