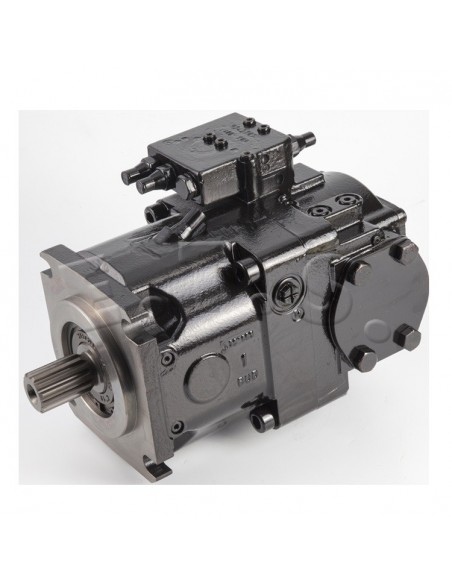

Hydraulic Pump 85 Cm³
In Stock
31,000 Lei
Tax included
RE563717
John Deere 2854, 8130, 8225R, 8230, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8330, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370RT, 8430, 8530, 8RT310, 8RT340, 8RT370, 8RT410,

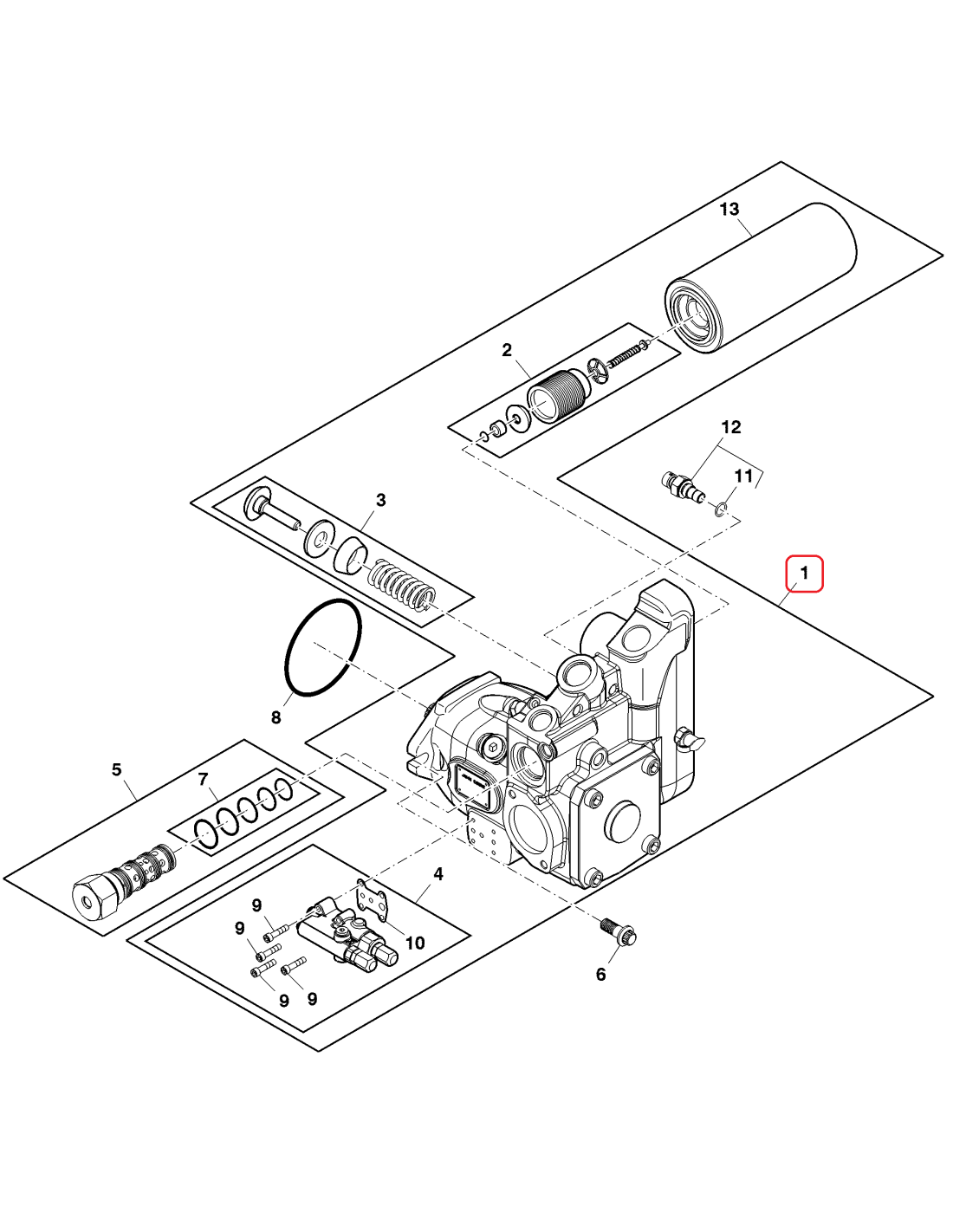

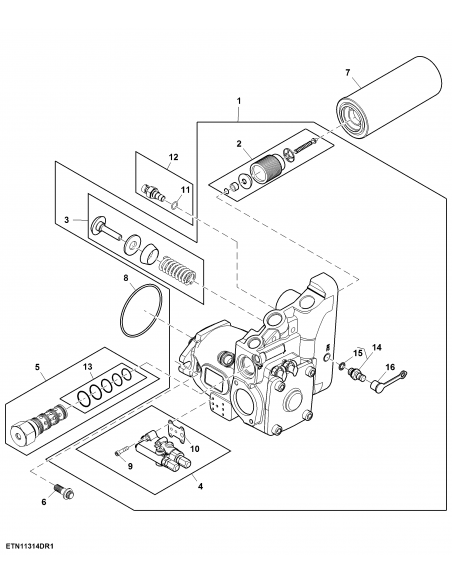

| KEY | PART NO. | PART NAME | QTY | Tractor Serial No. | REMARKS |
| 1 | RE563717 | Hydraulic Pump | 1 | SUB FOR RE289097; INCLUDES RE211014 | |
| 2 | RE211020 | Valve Kit | 1 | (ANTI-DRAIN VALVE) | |
| 3 | RE566661 | Valve Kit | 1 | (BYPASS VALVE) SUB FOR RE211019 | |
| 4 | RE211015 | Pump/Valve Controller | 1 | ||
| 5 | RE260748 | Control Valve | 1 | (PRIORITY VALVE) | |
| 6 | R230667 | Screw | 2 | M14 X 35 | |
| 7 | RE210857 | Oil Filter | 2 | ||
| 8 | T42302 | O-Ring | 1 | ||
| 9 | 19M10341 | Socket Head Screw | 4 | M6 X 30 | |
| 10 | F436313 | Seal | 1 | ||
| 11 | 51M7043 | O-Ring | 1 | 15.300 X 2.200 MM | |
| 12 | RE576665 | Sensor | 1 | SUB FOR RE213144 | |
| 13 | RE252945 | Seal Kit | 1 | ||
| 14 | RE190805 | Diagnostic Coupling | 4 | ||
| 15 | 51M7041 | O-Ring | 4 | 11.300 X 2.200 MM | |
| 16 | R77175 | Cover | 4 |
- Manufacturer
- John Deere
- Application
- Weight
RE563717
